Author:Fanlei Kong ^ab1, Xiujuan Chen ^b1, Yueming Li ^c, Li Tian ^b, Fuyuan Zheng ^b, Enge Wang ^ab, Guorui Zhao ^b

Journal:Journal of the European Ceramic Society

DOI: 10.1016/J.JEURCERAMSOC.2023.09.073

Abstract / 摘要

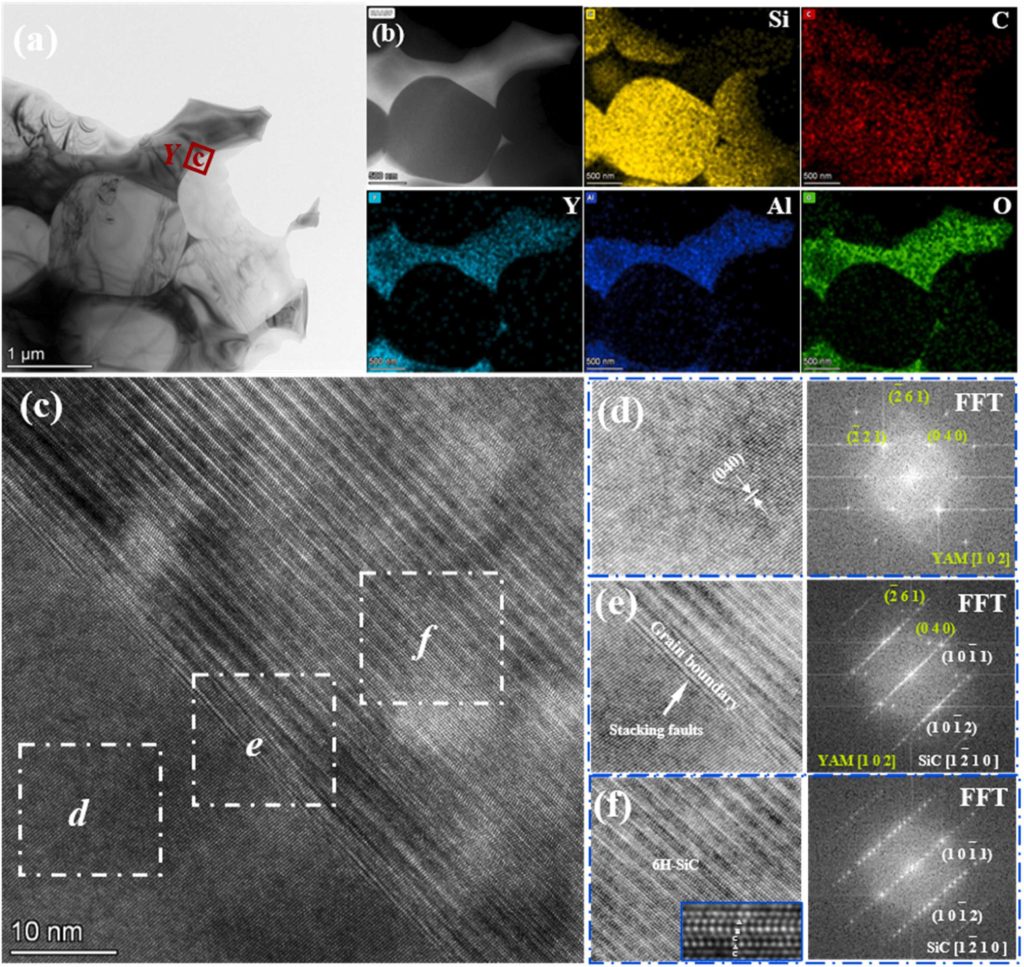

High density (97 %) SiC ceramics containing in-situ synthesized Y4Al2O9 (YAM) have been successfully fabricated by a novel PEP additive manufacturing technology combined with a one-step sintering method without any post-treatments. The process of additively manufacturing SiC green body, debinding and sintering has systematically studied. Meanwhile, the atomic structure of SiC and YAM was characterized, and the mechanical properties of sintered SiC ceramics were measured. The HRTEM results revealed the crystallographic orientation relationships between YAM and SiC as (0 4 0) YAM // (1 0 1- 1) SiC and [1 0 2] YAM // [1 2¯ 1 0] SiC for the first time. The density, Vickers hardness and three-point bending strength of the sintered SiC samples are 3.11 g/cm³, 19.35 ± 0.28 GPa and 225 ± 27 MPa, respectively. Thus, PEP combined with the one-step sintering method provides a new strategy for complex-shaped SiC ceramics with high density and mechanical properties.

Keyword / 关键词

Powder extrusion printing (PEP);Additive manufacturing (AM);SiC ceramics;Y;4;Al;2;O;9;(YAM);One-step sintering
